VDB-130-FD-M2

USB2.0 to Dual Isolated CAN FD

• Dual Isolated CAN FD
• Compatible with CAN 2.0A, CAN 2.0B, and CAN protocol
• USB 2.0 Interface
• M.2 Type 3042 Key B
• Operating Temp.: -40°C to 85°C

Product Status: Coming soon
線上詢價 Datasheet

Chipset

Fintek F81605N

Supported Data Rate

1, 2, and 5Mbps

Supported Bit Identier

11-bit for CAN 2.0A, 29-bit for CAN 2.0B

Electrical Characteristics

Isolation

5 kV rms for signal, 3 kV rms for power

CAN Output Voltage Range

5.0 VDC ±5%

Interface

Input

USB 2.0

Output
  • 2 x 1.0 mm 1×4-PIN JST (H1, H2)
  • PIN 1: GND_ISO
  • PIN 2: CAN_H
  • PIN 3: CAN_L
  • PIN 4: GND_ISO

Conguration

Termination Resistor *PIN 1 for H2 *PIN 2 for H1

ON

(Default Setting)

 OFF

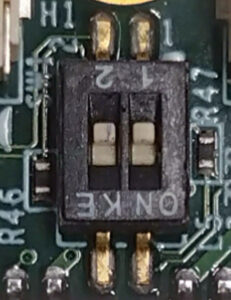

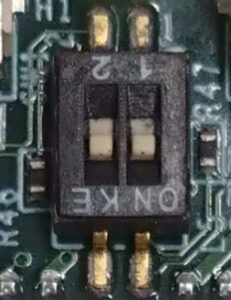

VDB-130-FD-M2 ON

VDB-130-FD-M2 OFF



Power Requirement

Power Input

3.3 VDC ±10%

Power Consumption

TBD

Environmental

Operating Temp.

-40°C ~ 85°C, ambient w/ air flow 0.6m/s

Storage Temp.

-55°C ~ 120°C

Relative Humidity

10% RH – 90% RH (non-condensing)

Software

Supported Driver
  • Windows 10/11 64-bit,
  • Linux Kernel 2.6 or above

EMC Compliance

CE, FCC

Mechanical

Form-factor

M.2 3042 Key B

Dimensions (L x W x H)

30 x 42 x 8 mm

Ordering Information

Model Number

VDB-130-FD-M2

Description

M.2 3042 Key B USB 2.0 to Dual Isolated CAN FD Module

Accessory

2 x D-Sub 9 Male Cable

State of Origin

Made in Taiwan

D-Sub 9 Connector Pinout

Pin No.

 Signal

1

N/C

2

CAN_L
3

GND
4

N/C
5

N/C
6

GND
7

CAN_H
8

N/C
9

N/C
