VBOX-3611-IP65

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz

N/A

2 x DDR4 2133 MHz SO-DIMM up to 32GB

1 ~ 255 Level Reset

2.0

Intel HD Graphics 520
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing – Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0

N/A

N/A

1* Use only with Single Link DVI Cables.

N/A

Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz
Max Resolution (DP) : 4096 x 2304@60Hz

1 x Intel I219LM (support iAMT for i5, i7 only) Gigabit Ethernet
1 x Intel I210-AT Gb/s Ethernet Controllers Onboard Support PXE and WOL

4 x M12 A-Code for GbE

3 ports with PoE 802.3af

2 x RS-232/422/485 (optional max. 4 x RS-232/422/485)

4 x USB 2.0 Ports on Front I/O

4 in and 4 out with Relay 5V / 100mA

2 x Analog Input (Voltage range 0~48VDC, accuracy ±500 mV)

N/A

2 x SIM Card Sockets Supported Onboard

N/A

1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD

N/A

N/A

1 x M.2 M key 2280 slot supports SATA SSD

N/A

3 x Mini-Card Slots

1 x M.2 A-E Key 2230 slot

9V -48V DC Power Input

Automatics Recovery Short Circuit Protection

Vehicle Power Ignition for Variety Vehicle

N/A

Patented Battery Kit

Internal Battery Kit for 10 Mins Operating (Optional)
*UPS backup time varies depending on actual overall system power consumption.
Patent No. : M447854 – Build-in Battery

250 x 155 x 55 mm

1980g (Barebone)

Aluminum Alloy

N/A

10% RH – 90% RH (non-condensing)

-40 ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. : M448011 – Thermal Cooling

-40 ~ 80°C

Vibration (with SSD): IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

Shock: Operating: MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD

IP65

CE, FCC Class A, E-13, EN50155, EN45545-2 (R25), ECE R118

N/A

M447854

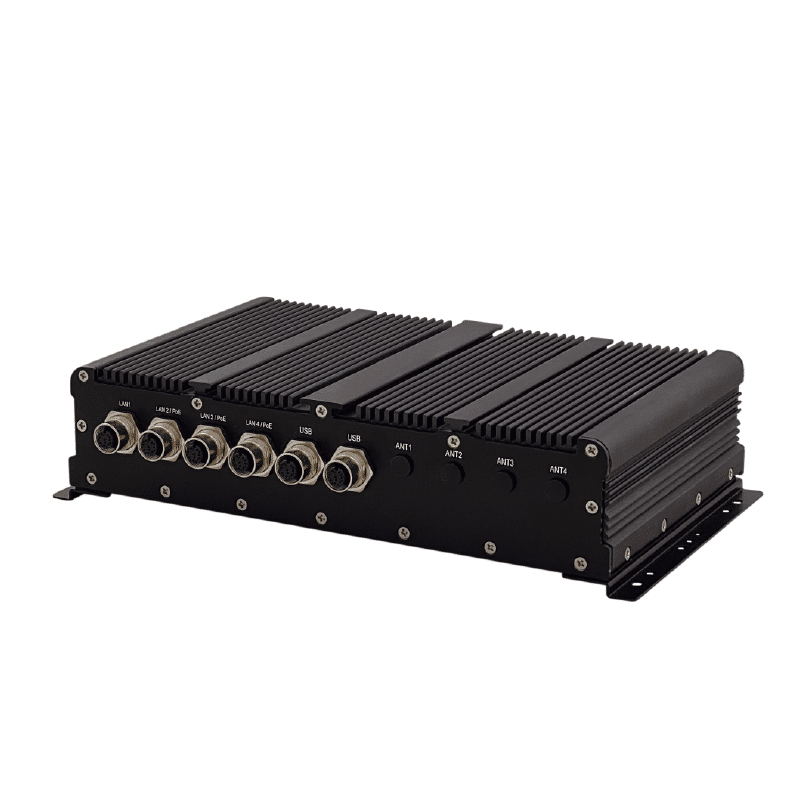

VBOX-3611-IP65

Intel Gen6 Core i7-6600U CPU with HD 520 GPU IP65 In-Vehicle Computer

Made in Taiwan
