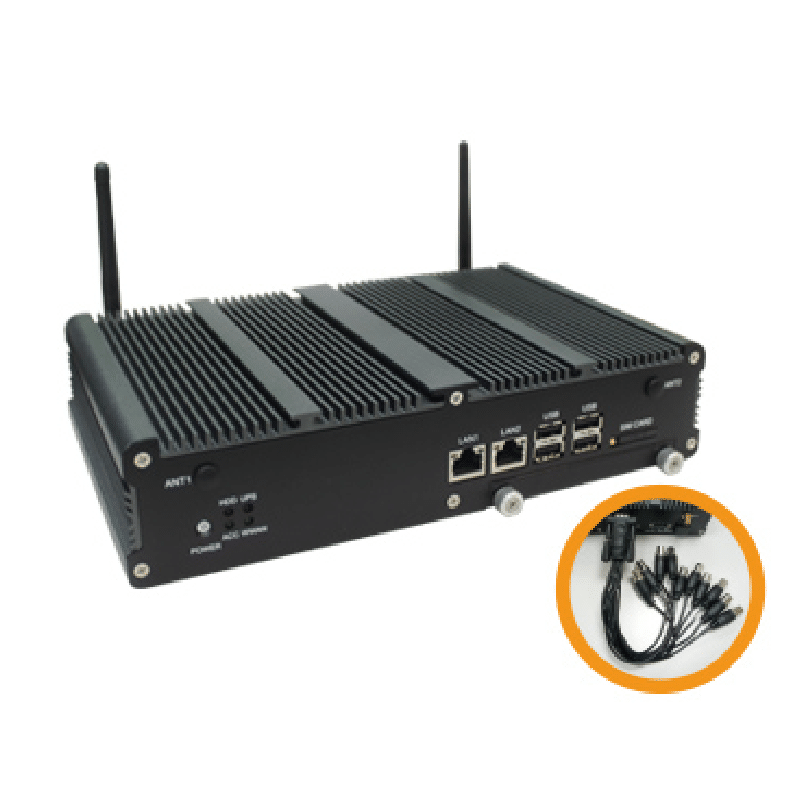

AMD G-T56N Dual Core APU with Radeon HD 6320 On-Board Computer
AMD G-T56N Dual Core 1.65GHz
AMD G-T40E Dual Core 1.0GHz (Optional)
AMD A50M Controller Hub
2 x DDR3 1333MHz SO-DIMM up to 8GB
1 ~ 255 Level Reset
AMD G-T56N Radeon HD 6320
UVD3 Hardware Video Decoder – MPEG2, MPEG4, H.264
1
1 (Share with DVI-I)
Up to 2560 x 1600 @85Hz
Support PXE and Wake On Lan
Realtek ALC662 HD Codec onboard
1
Optional
Optional
2 x Realtek RTL8111E Gb/s Ethernet onboard
2 x RJ45 Ports for GbE
3 x RS-232 (2 with RS-422/485 (Auto Direction Control))
4 x USB 2.0 Ports on Front I/O
4 in and 2 out with Relay 12V / 80mA
1 x SIM Card Socket Supported Onboard with eject
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD 1 x SATA DOM
9V – 32V DC Power Input
Automatics Recovery Short Circuit Protection
Vehicle Power Ignition for Variety Vehicle
Power off Delay Time Setting by Software, Default is 5 Mins
Internal Battery Kit for 10 Mins Operating (Optional)
250 x 150 x 55 mm
1780 g (Barebone)
Aluminum Alloy
Supports Both of Wall-mount/VESA-mount
10 ~ 95% (non-condensing)
-40 ~ 70C (SSD), ambient w/ air
-40 ~ 80C
Vibration(random): 2.5g@5~500 Hz with SSD
Vibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle-Highway, EN61373
Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test
Shock: Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Crash Hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=100g
CE, FCC Class A, EN50155, EN50121, eMark Compliance
Patent No. : M447854 – Build-in Battery
