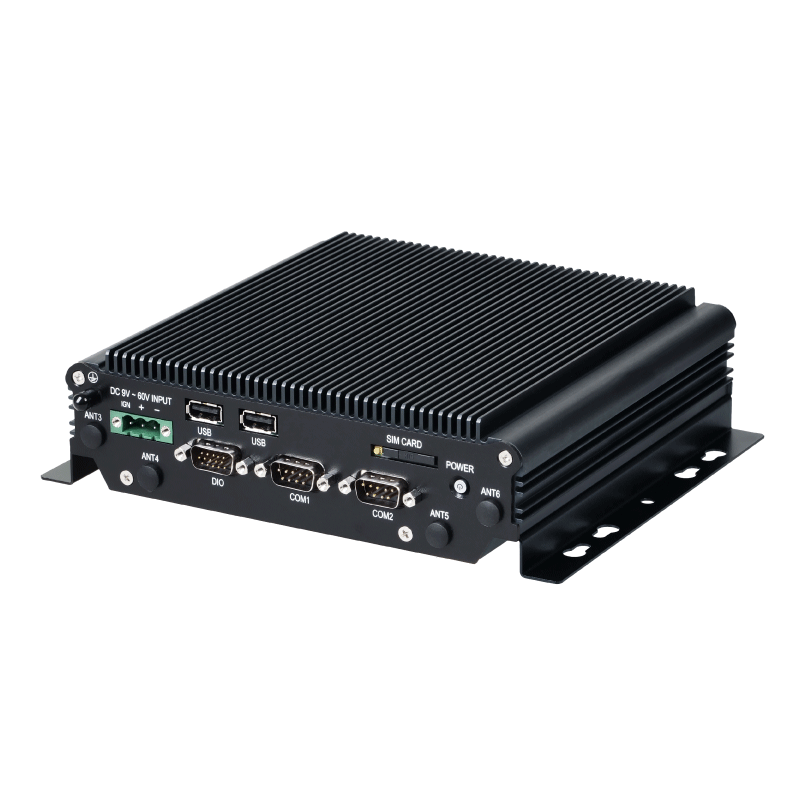

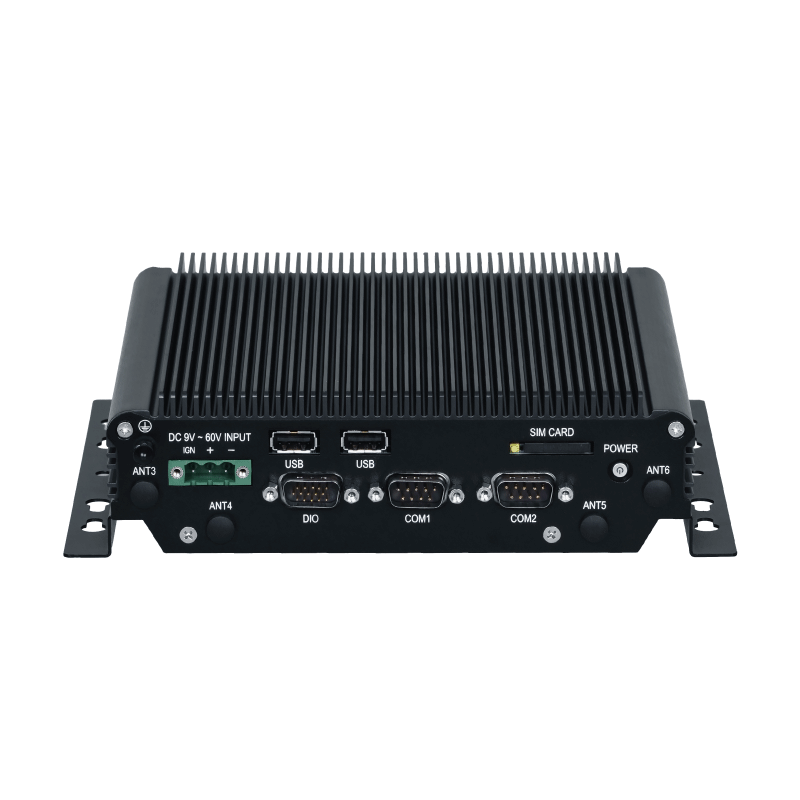

VBOX-3121-NX

Intel® Core™ i3-6100U 2.3GHz
Intel® Celeron® Processor 3955U 2.0GHz

1 x DDR4 SO-DIMM up to 16GB

Intel HD 520 Graphics for i3

2 x SATA ports with 6Gb/s Transfer Rate

1 x Intel® I210-AT Gigabit Ethernet (LAN 1)
1 x Intel® I219-LM Gigabit Ethernet (LAN 2)

TPM 2.0

1 ~ 255 level reset

2 x COM for RS-232/422/485 (The 3rd COM for option)

2 x USB 3.0, 2 x USB 2.0 ports

2 x RJ-45 ports for GbE

2 x HDMI®, 1 x VGA

4 DI, 4 DO (5V / 100mA), 2 x Analog Input (0~60V with 0.5V step)

MIC-in/Line-out

3 x mPCIe slots (2 x USB interface only, one for SIM card slot)
1 x M.2 2230 Key E slot

6 x SMA-type antenna holes for WLAN / Bluetooth/WWAN / GPS expansions

1 x SIM card slot for the mPCIe slot on the VIB (USB Interface)

Windows 10 IoT 64-bit, Ubuntu 20.04 LTSC 64-bit

-40 ~ 70°C (w/ SSD), ambient w/ 0.6m/s airflow

-40 ~ 80°C

10% RH – 90% RH (non-condensing)

EC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD

CE, FCC Class A, E-Mark, ECE R118

2 x 6Gb/s SATA connectors
1 x 2.5″ storage installation space

9V – 60V DC Power Input

Vehicle Power Ignition for Variety Vehicle

Power off Delay Time Setting by BIOS and Software

Internal Battery Kit for 10 Mins Operating (Optional)
*UPS backup time varies depending on actual overall system power consumption.
Patent No. : M447854 – Build-in Battery

Aluminum Alloy

Wall-mounting
(VESA mounting is option)

1430g

210 mm x 171 mm x 54 mm
(Mounting kit is included)

VBOX-3121-NX-i3, VBOX-3121-NX-C1

Intel® Core™ i3-6100U with HD Graphic 520 / 2 x LAN/ 2 x HDMI®/ VGA with 2 x RS-232/ DC 9-60V Input In-Vehicle Computer

Made in Taiwan

SO-DIMM max.DDR4-2133,4GB~16GB,0~70°C/-40~85°C

2.5inch MLC/TLC 64GB~1TB 0~70°C/-40~85°C

M.2 2230 Key A-E Wi-Fi and bluetooth module

mPCIe CAN bus module

mPCIe WWAN kit

mPCIe GPS kit

BAT-3000 kit, 1150mAH 3S1P Battery kit (0~60°C)

12V/5A 60W
