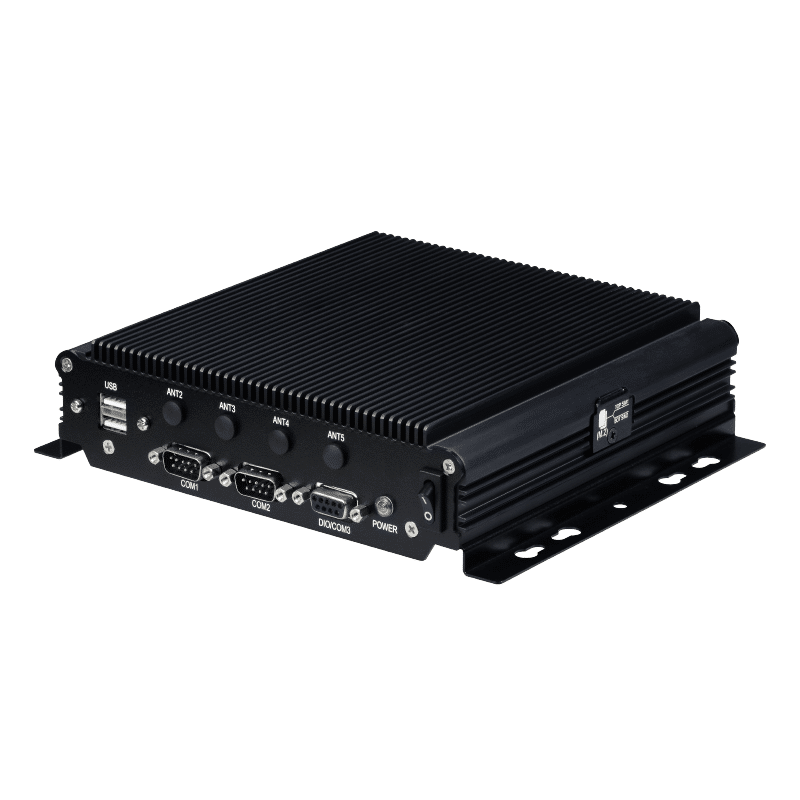

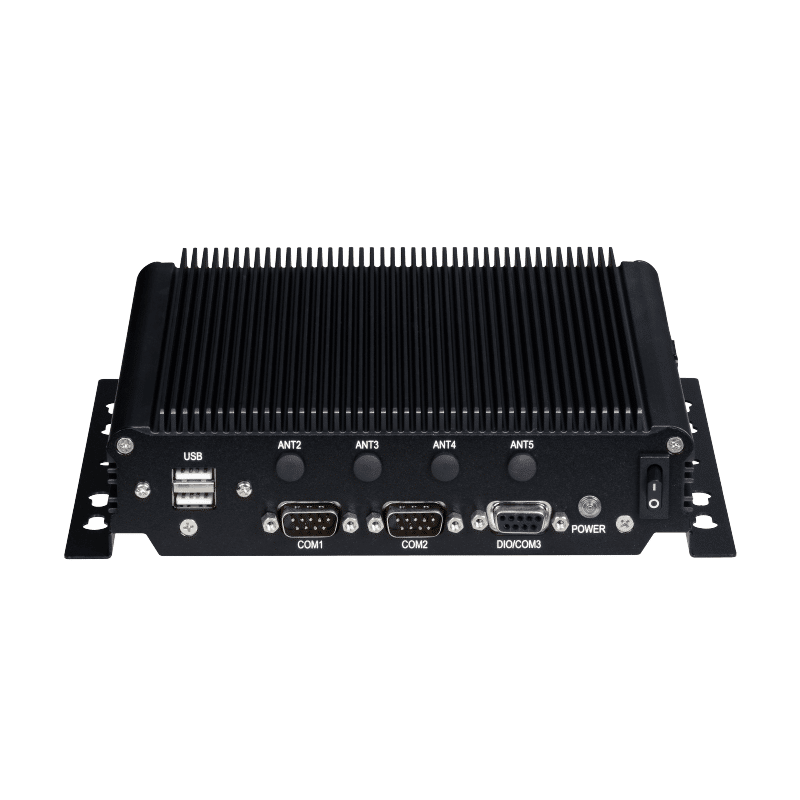

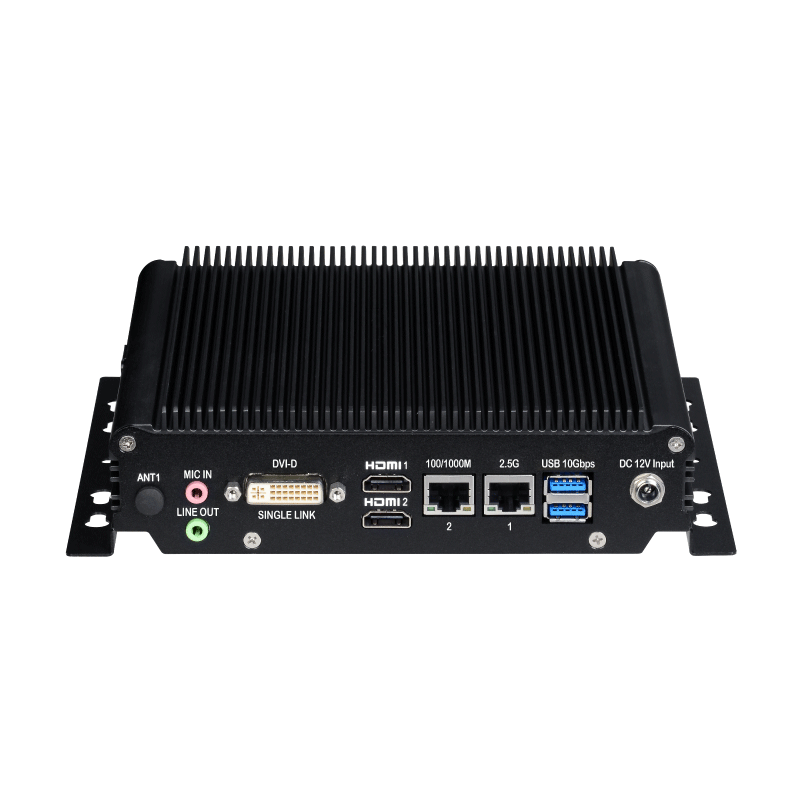

Intel® 11th Gen Core i7-1185G7E CPU with 2x LAN/ 2x HDMI® 2.0b/ 1x DVI-D/ 2x COM/ DC 12V Fanless Box PC
Intel® 11th Gen CoreTM i7-1185G7E up to 2.8 GHz*
Intel® 11th Gen CoreTM i5-1145G7E up to 2.6 GHz*
Intel® 11th Gen Core TM i3-1115G4E up to 3.0 GHz*
Intel® Celeron@ 6305E1.8GHz
*CPU TDP is configured at 15W as default setting.
1 x DDR4 SO-DIMM up to 32 GB
1~ 255 Level Reset
2.0
Intel® Iris® Xe Graphics (for Core™ i7/i5 SKU)
Intel® UHD Graphics (for i3/Celeron™ 6305E SKU)
2
1 (Use only with Single Link DVI Cables)
1
1
1 x lntel® 2.5GbE
1 x lntel® GbE
2x RJ-45 ports (1 x 2.5GbE, 1x GbE)
2 x RS-232/422/485 (Optional 3rd serial port)
2 x USB 2.0
2 x USB 3.2 Gen 2
1 x GPIO port supporting 4 x GPI and 4 x GPO (5VDC TTL)
2 x SIM Card Socket Support Onboard
5 x SMA Type External Antenna Pre-cut Hole
1 x SATA Connector for 2.5″ HDD/SSD
1 x M.2 2280 Key M Slot
( Support NVMe and SATA SSD w/auto-detection)
1 x M.2 3042/52 Key B for 5G/LTE modem
1 x M.2 2230 Key A-E for Wi-Fi + Bluetooth
DC 12V Input with DC-Jack
210(L) x 171 (W) x 50(H) mm
( Wall Mount Bracket Included)
1600g
Aluminum Alloy
Wall-mount
(Optional VESA and Din Rail Mounting Kit)
10% RH – 90% RH (non-condensing)
-30ºC ~ 60ºC, ambient w/ 0.6m/s airflow
-40ºC ~ 85ºC
CE, FCC Class A
Windows 10 IoT Enterprise 64bit LTSC
Windows 11 IoT Enterprise LTSC
Ubuntu 20.04.6/22.04 LTS 64-bit
SBOX-2602-i7, SBOX-2602-i5, SBOX-2602-i3, SBOX-2602-C1
Intel® 11th Gen Core TM i7-1185G7E CPU w/ 2x LAN/ 2x HDMI® 2.0b/ 1x DVI-D/ 2x COM/ DC 12V/Fanless Box PC
Made in Taiwan
DDR4 3200, 8GB~32GB -40~85C
M.2 2280 Key B+M SATA SSD TLC 64GB~1TB -40~8C
M.2 2280 Key M NVMe TLC 256GB~1TB -40~85C
M.2 2230 Key A+E Module
M.2 3042/3052 Key B Module
DIN Rail/VESA kit
