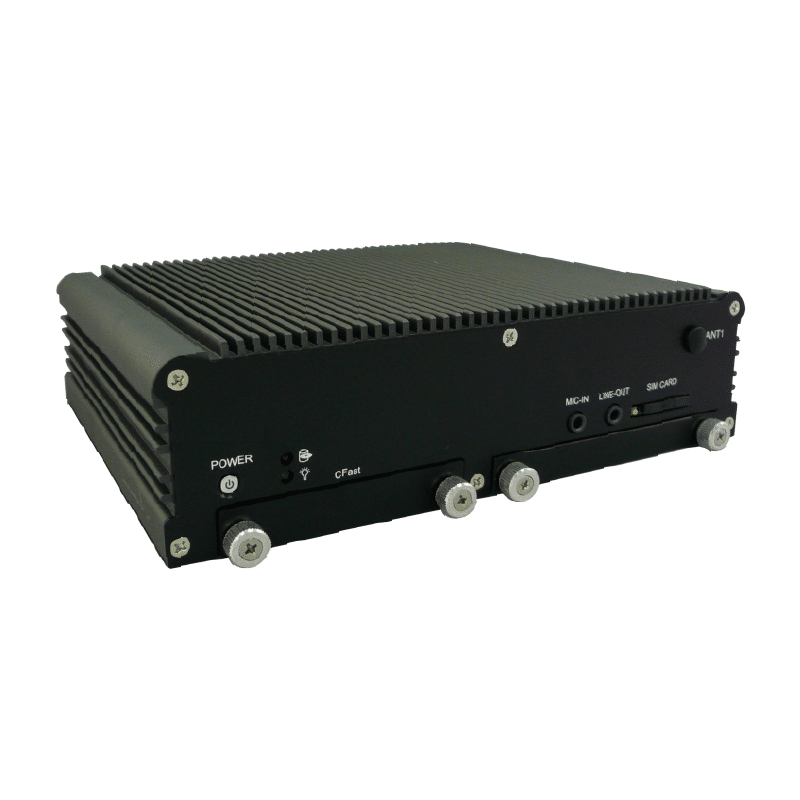

Intel. D2250 Dual Core 1.86GHz Marine Box Computer
Intel Cedarview AtomTM D2550 Dual Core 1.86 GHz
Intel NM10
1 x DDR3-1066 SO-DIMM up to 4GB
1 ~ 255 Level Reset
2 x Serial ATA 2.0 Ports
Intel GMA3650
Optional
1
1
1
1
2 x Intel i210-AT Gigabit Ethernet
2 x RJ45 Ports for GbE, support WOL, PXE, and Teaming
Connectors can be changed to 2 x M12 on rear side
1 x RS232/422/485 and 1 x RS-232/RS-485
( optional up to 5 Serial ports)
4 x USB 2.0 Ports
1 x Mini-PCIe with SIM for 3G Module
1 x CFast socket, external removable
(OPTION: 1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD, external removable)
2 x Mini PCIe Card Slots
+9V to 32VDC input with “maritime / industrial” surge protection (reverse polarity)
+24VDC input
Positive, Chassis Ground, and Negative
4 ch
Logic 0 : 0.8V max
Logic 1: 12V min. and 24V max
4ch
Output Capability Sink Current : 200mA
Logic 0 :0V
200 (W) x 160 (D) x 55 (H) mm
1200 g (Barebone), TBD
Aluminum Alloy
Wall-mount, VESA-mount, Din Rail Mounting Kit
10 ~ 95% @ 40oC (non-condensing)
-25 ~ 70C, ambient w/ air
-30 ~ 80C
CE, FCC Class A, IEC60945 4th Edition
IACS E10, DNV 2.4
766000001000
Intel D2550 Dual Core 1.86GHz Marine Box Computer
Made in Taiwan
