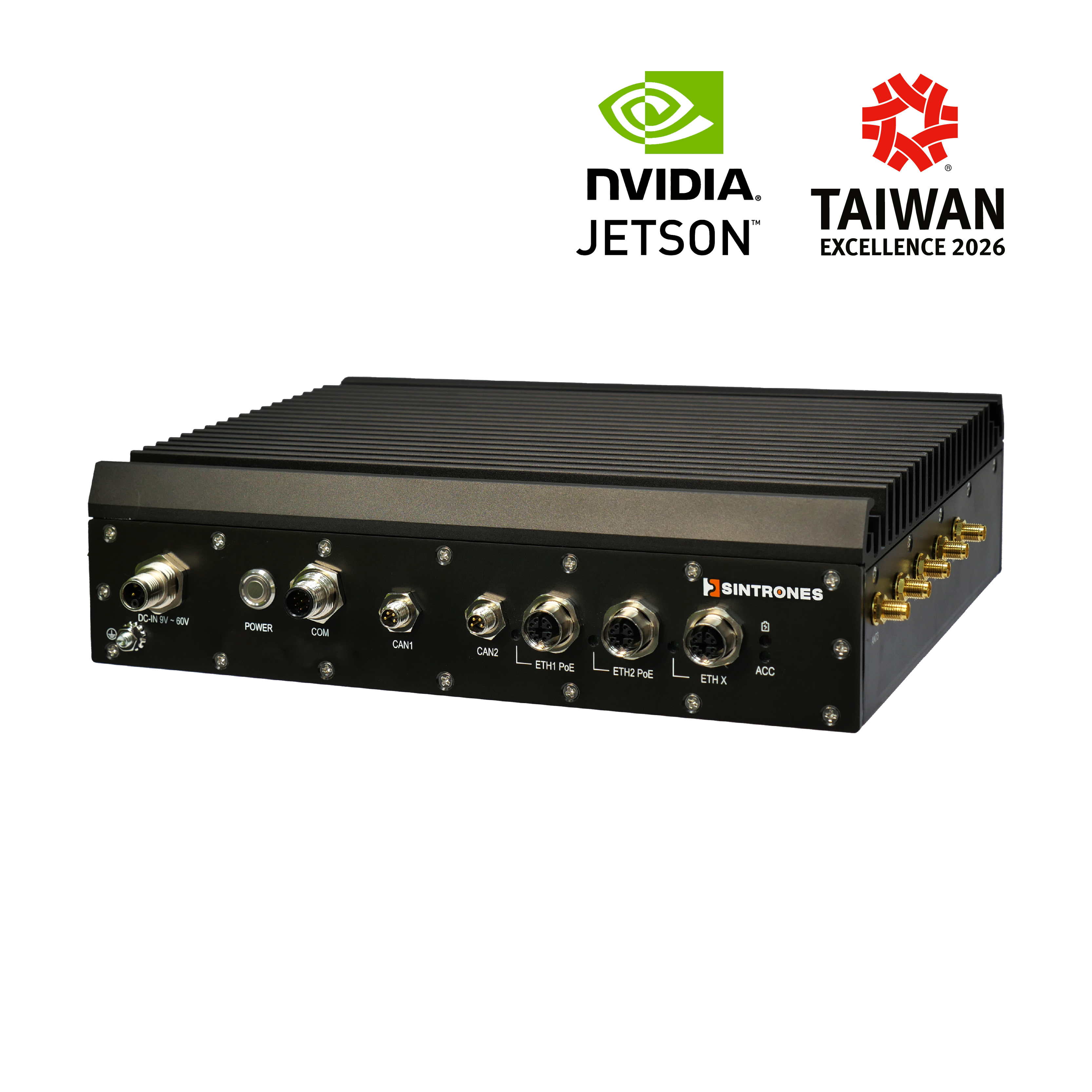

IBOX-650P-IP66

• NVIDIA® Jetson AGX Orin™ 64GB – 275 TOPS
  (2048 CUDA® cores GPU + 12-core Arm Cortex-A78AE CPU + 64 GB LPDDR5)
• NVIDIA® Jetson AGX Orin™ 32GB – 200 TOPS
  (1792 CUDA® cores GPU + 8-core Arm Cortex-A78AE CPU + 32 GB LPDDR5)

Marvell® Industrial 10GbE, Intel® Industrial 2.5GbE

Security Boot, Arm TrustZone

1 x 10GbE, 2 x 2.5GbE w/ 2 x IEEE 802.3at PoE PSE Class 4 (PoE+ 30 watts)

(3 x Phoenix Contact® M12 X-coded connectors)

2 x USB Type-A/IP67 connector for USB 3.2

* One port share 10Gbps bandwidth

1 x HDMI® via Type-A w/ IP67

1 x HD Audio from the HDMI®

1 x M12 A-coded connector for RS-232/422/485

2 x M8 A-coded connectors for CAN FD

1 x USB Type-C for System Recovery (Device only)

4 x FAKRA-Z connectors for GMSL-2 cameras

1 x Nano SIM card slot

1 x Phoenix Contact® M12 K-coded connector for DC-IN 9~60V

OCP, OVP, Surge and Reversed Polarity Protection

Ignition Detection with Smart Power Management

High-capacity coin cell battery for RTC

Backup battery for system power backup

NVIDIA® JetPack 6.2 or above

   (Jetson Linux and NVIDIA® development tools included)

• 1 x M.2 3042/52 Key B slot (USB3.0) with a Nano SIM Card Slot
• 1 x M.2 2230 Key E slot
  * Thermal solution is required for M.2 5G Module

1 x mPCIc Full size slot (USB.2.0 supported)

• 1 x 64GB eMMC (Built-in within SoM)
• 1 x M.2 2280 Key M slot supports NVMe SSD (Pre-installed)

300(L) x 190(W) x 77.5(H) mm

5,100g (Barebone)

Aluminum Alloy

Wall-mount

IP66

-25°C ~ 70°C w/0.6 m/s airflow (for barebone system)

*Operating Temperature Varies by Accessories Installed.

-40°C ~ 85°C

10% RH – 90% RH (non-condensing)

• MIL-STD-810H, Method 514.6, Procedure I, Cat.4 (Operating)
• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

MIL-STD-810H, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)

CE, FCC Class A, E-Mark, ECE R118, EN50155, EN45545-2 (R25)

• IBOX-650P-IP66-01-JAO64｜NVIDIA®Jetson AGX Orin™ 64GB / VDB-101 / 4 x GMSL-2 / 2 x PoE / 1 x 10GbE
• IBOX-650P-IP66-01-JAO32｜NVIDIA®Jetson AGX Orin™ 32GB / VDB-101 / 4 x GMSL-2 / 2 x PoE / 1 x 10GbE
• IBOX-650P-IP66-JAO64-LE｜NVIDIA®Jetson AGX Orin™ 64GB / 2 x PoE / 1 x 10GbE
• IBOX-650P-IP66-JAO32-LE｜NVIDIA®Jetson AGX Orin™ 32GB / 2 x PoE / 1 x 10GbE

*Without an external NVMe SSD, the Jetpack will be pre-installed in the internal 64GB eMMC Jetson Orin SoM Lifecycle is available through January 2030.

NVIDIA® Jetson AGX Orin™ w/ 1x 10GbE / 2x 2.5GbE / 1x HDMI / 2x CAN FD/ DC 9-60V/ Intelligent Computer

Made in Taiwan

M.2 2280 NVMe SSD 240GB / 480GB / 960GB

M.2 2230 Wi-Fi Module

M.2 3042/52 WWAN Modem

mPCIe GPS Module

BAT-2300v2 (Operating Temp. : -10°C ~ 60°C (-4°F ~ 140°F))

AC/DC 100-240V/24V 160W C14 DC plug power adapter

Supported Camera List
